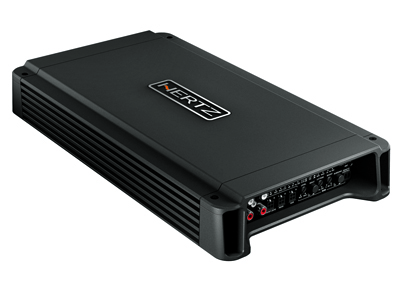

Hertz HCP 5D
The HCP 5D is a complete front, rear and subwoofer amplifier with five extremely powerful D Class channels. An array of inputs allows for simple connection to all head units.
» Output Power (RMS) @ 14.4 VDC, THD 1%:
» 5 Ch: 55 W x 4 + 160 W x 1 (4 Ohms)
» 5 Ch: 90 W x 4 + 280 W x 1 (2 Ohms)
» 3 Ch: 180 W x 2 (4 Ohms) + 160 W x 1 (4 Ohms)
» 3 Ch: 180 W x 2 (4 Ohms) + 280 W x 1 (2 Ohms)
» Output Power (RMS) @ 14.4 VDC, THD 10%:
» 5 Ch: 65 W x 4 + 200 W x 1 (4 Ohms)
» 5 Ch: 105 W x 4 + 330 W x 1 (2 Ohms)
» 3 Ch: 210 W x 2 (4 Ohms) + 200 W x 1 (4 Ohms)
» 3 Ch: 210 W x 2 (4 Ohms) + 330 W x 1 (2 Ohms)
» Filters
» Bypass Yes
» Hi-Pass A Ch: 50 � 5 kHz @ 12 dB/Oct
» Lo-Pass A Ch: 50 � 500 Hz(Hi) @ 12 dB/Oct. C Ch: 50 � 500 Hz @ 24 dB/Oct.
» Band-Pass B Ch: 50 � 500 Hz @ 12 dB/Oct.
» Subsonic 25 Hz @ 24 dB/Oct.
» Distortion – THD (100Hz @ 4 Ohm) 0.02%
» S/N Ratio (A weighted @ 1V) 100
» Damping factor (100Hz @ 4 Ohm) A & B Ch 100 C Ch 250
» Size W x D x H
» mm (in.) 345 x 190 x 50 (13.58 x 7.48 x 1.97)
