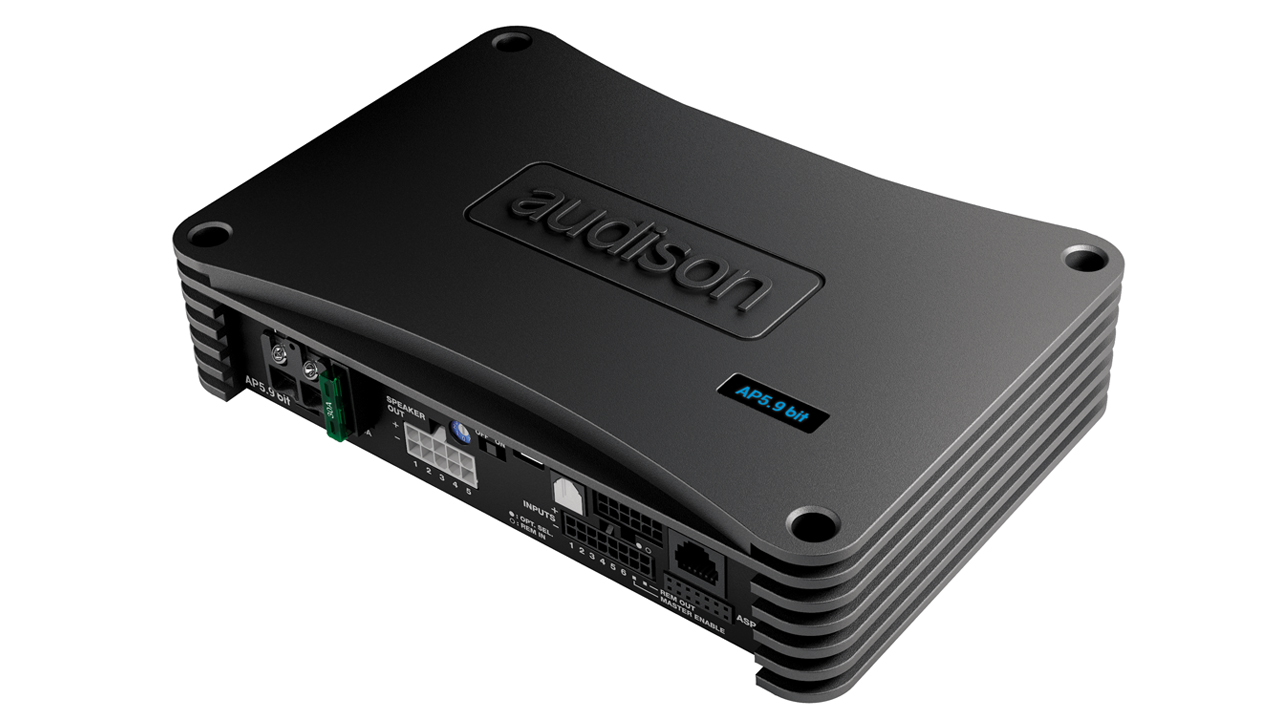

Audison Prima AP5.9 bit
This revolutionary car audio upgrade amplifier is packed full of technological innovations which will make any car sound many times better than standard. The five channels are ideal for powering an active two-way system up front while adding plenty of essential low-end with the remaining sub woofer output. Upgrade your speakers to take your sound from evolution to revolution!
Stuffed full with technology, the internal bit processor allows for preset time-aligned and equalised sound curves to be selected to optimise performance for many specific vehicles. In custome mode, a qualified installer has the benefit of time alignment and a 10-band parametric equaliser allowing for a specific custom set up designed to get the most out of your specific music choices.
» MAX POWER 520 W
» OUTPUT POWER (RMS) @ 12.0 – 14.4 VDC, 1% THD:
» � 5 Ch @ 4 Ohms: 20 W x 2 + 50 W x 2 + 150 W x 1
» � 5 Ch @ 2 Ohms: 40 W x 2 + 90 W x 2 + 270 W x 1
» OUTPUT POWER (RMS) @ 14.4 VDC, 10% THD:
» � 5 Ch @ 4 Ohms : 25 W x 2 + 60 W x 2 + 190 W x 1
» � 5 Ch @ 2 Ohms: 50 W x 2 + 115 W x 2 + 350 W x 1
» Distortion – THD @ 1 kHz, 4 Ohms, 90% Power (Ch 1-2-3-4): 0.08 %
» Distortion – THD @ 1 kHz, 4 Ohms, 90% Power (Ch 5): 0.1 %
» Bandwidth (-3 dB, 2 V RMS, 4 Ohms): 10Hz – 20kHz / 10Hz – 500Hz SUB
» Input sensitivity: 2 – 15 V RMS
» Max size (mm/in.): 198 x 45.50 x 134 / 7.8 x 1.8 x 5.27
» Weight (kg/lb): 1.5 / 3.3
