Description
The EDGE DB Series features a new revision to the world renown EDB Series of boxes with a new Stealth Design.
Our boxes all feature Turbo and Flared ports for smooth airflow which gives louder and more crisp bass, this paired with solid enclosure construction is a winning solution. The EDB series features a Dark design with hint of the signature EDGE orange and a new lower bass response with some component changes and alterations to the built in amplifier. This gives more depth and rumble!
When wanting to add that missing bass, the EDGE DB Series enclosures give an all in one solution packing a punch and delivered crisp, sharp and deep bass.

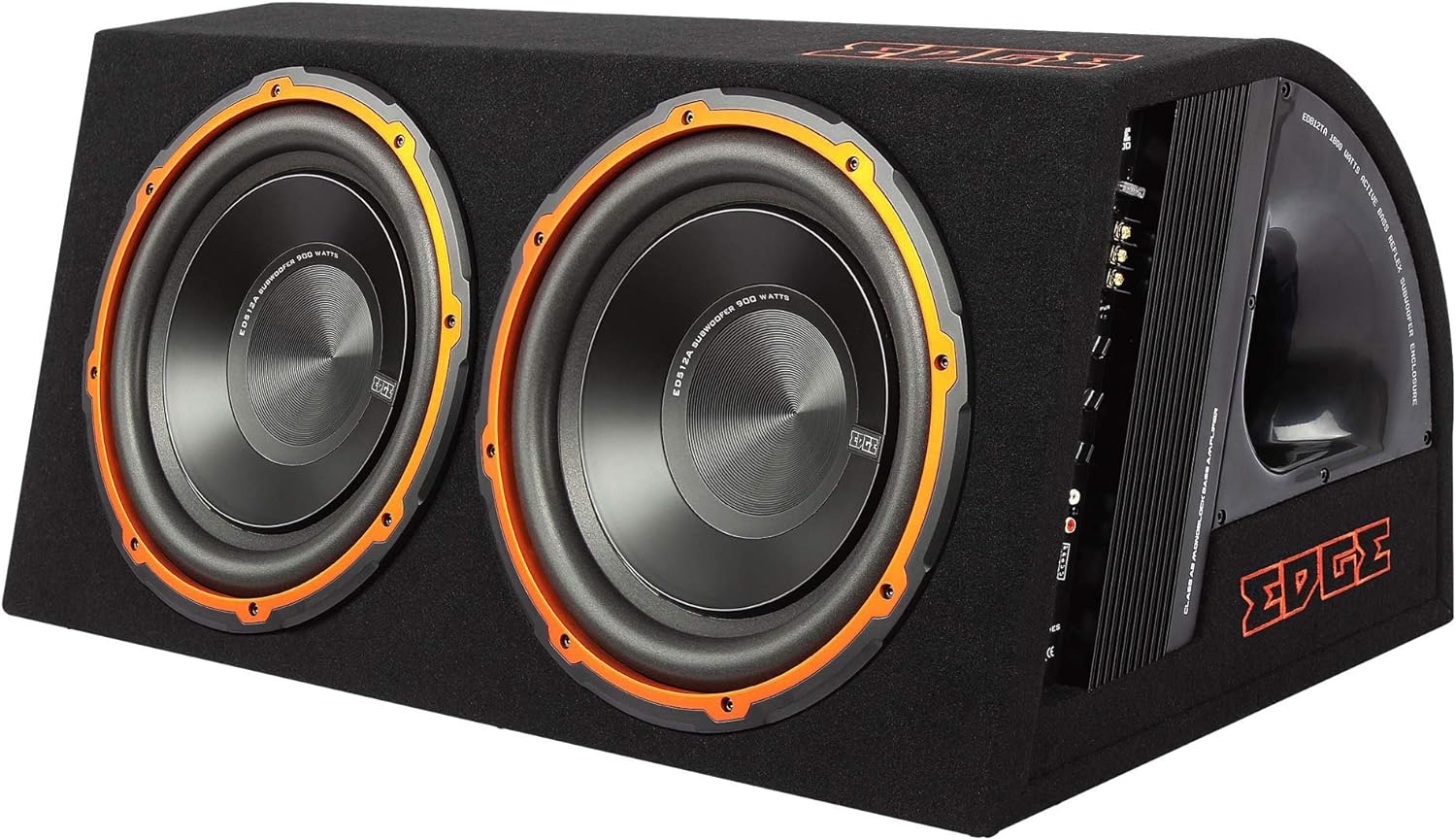

EDGE Car Audio presents the EDB12TA, the best selling twin 12 inch enclosure we have ever made.
The EDGE 12″ Twin Active Subwoofer Enclosure is an all in one box solution with an integrated active amplifier. The Edge 12 is a Twin Active Bass reflex subwoofer with an exceptional bass response.
To do this we utilised a radiused shape on the back of the box to reduce size but still keep volume as well as the unique design of the port which allows a 3 inch aeroport to be used but a massive smooth outer to give a super aerodynamic flow of air in and out the port for maximum volume.
Active subwoofer enclosure with integrated amplifier all in one box.
MOSFET Power for high switching speed and greater stability.
Ported bass enclosure increases the amount of bass your woofer produces without adding any additional power to your system.
Low level input for ease of use with RCA leads and High level speaker input.
Low pass filter limits the amount of high frequency output.
Secret Channel to hide amplifier cable for a clean installation.
Features
All new active amplifier delivers deeper bass
Low and high level input
Flared turboport reduces turbulence
Specification
Type: Active Bass Enclosure
Driver: ED512A x 2
RMS Power: 600 watts
Peak Power: 1800 watts
Impedance: 4 Ohms
Configuration: 4th order bass reflex
Amplifier: ED7300 (Active)
Installation
Dimensions (H x W x D): 338mm x 740mm x 413mm (13.3″ x 29.1″ x 16.3″)
