Description

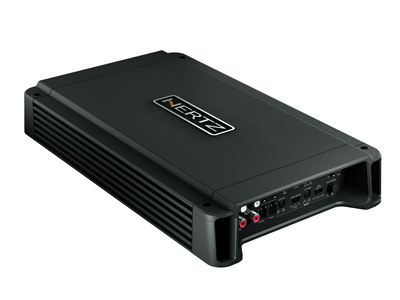

Hertz HCP 4
HCP 4 is a car audio amplifier designed to accurately reproduce all musical genres. It features four separate channels for multiple configurations.
» Output Power (RMS) @ 14.4 VDC, THD 1%:
» 4 Ch: 55 W x 4 (4 Ohms)
» 4 Ch: 85 W x 4 (2 Ohms)
» 3 Ch: 55 W x 2 (4 Ohms) + 170 W x 1 (4 Ohms)
» 3 Ch: 85 W x 2 (2 Ohms) + 170 W x 1 (4 Ohms)
» 2 Ch: 170 W x 2 (4 Ohms)
» Output Power (RMS) @ 14.4 VDC, THD 10%:
» 4 Ch: 65 W x 4 (4 Ohms)
» 4 Ch: 95 W x 4 (2 Ohms)
» 3 Ch: 65 W x 2 (4 Ohms) + 190 W x 1 (4 Ohms)
» 3 Ch: 95 W x 2 (2 Ohms) + 190 W x 1 (4 Ohms)
» 2 Ch: 190 W x 2 (4 Ohms)
» Filters
» Bypass Yes
» Hi-Pass A/B: 80 Hz @ 12 dB/Oct.Lo-Pass
» Band-Pass A/B: 50 � 500 Hz @ 12 dB/Oct.
» Distortion – THD (100Hz @ 4 Ohm) 0.01%
» S/N Ratio (A weighted @ 1V) 103 dB
» Damping factor (100Hz @ 4 Ohm) 120
» Size W x D x H
» mm (in.) 315 x 190 x 50 (12.40 x 7.48 x 1.97)
