Description

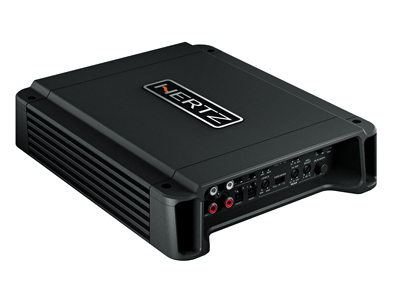

Hertz HCP 4D
HCP 4D is a D Class amplifier offering up to 1160 Watts (RMS) it is the ideal choice for those who want high power levels in complex systems.
» Output Power (RMS) @ 14.4 VDC, THD 1%:
» 4 Ch: 75 W x 4 (4 Ohms)
» 4 Ch: 130 W x 4 (2 Ohms)
» 3 Ch: 75 W x 2 (4 Ohms) + 260 W x 1 (4 Ohms)
» 3 Ch: 130 W x 2 (2 Ohms) + 260 W x 1 (4 Ohms)
» 2 Ch: 260 W x 2 (4 Ohms)
» Output Power (RMS) @ 14.4 VDC, THD 10%:
» 4 Ch: 85 W x 4 (4 Ohms)
» 4 Ch: 145 W x 4 (2 Ohms)
» 3 Ch: 85 W x 2 (4 Ohms) + 290 W x 1 (4 Ohms)
» 3 Ch: 145 W x 2 (2 Ohms) + 290 W x 1 (4 Ohms)
» 2 Ch: 290 W x 2 (4 Ohms)
» Filters
» Bypass Yes
» Hi-Pass A/B: 50 � 3.2k Hz @ 12 dB/Oct.
» Lo-Pass A/B: 50 � 3.2k Hz @ 12 dB/Oct.
» Band-Pass Yes
» Distortion – THD (100Hz @ 4 Ohm) 0.02%
» S/N Ratio (A weighted @ 1V) 100 dB
» Damping factor (100Hz @ 4 Ohm) 200
» Size W x D x H
» mm (in.) 215 x 190 x 50 (8.46 x 7.48 x 1.97)
